ADA

FILTRATION SYSTEM - Super Jet Filter series

Super Jet Filter ES-150 Ver.2 / ES-300 Ver.2

  • ES-150 Ver.2

  • ES-300 Ver.2

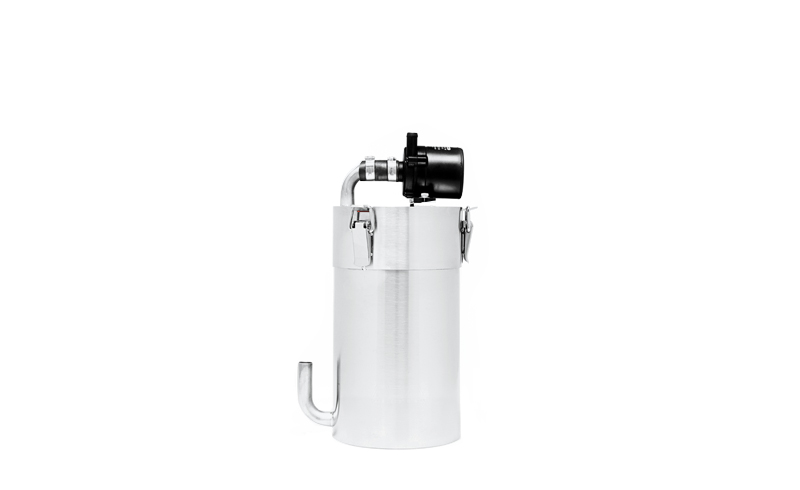

Super Jet Filter ES-150 Ver.2 / ES-300 Ver.2

Super Jet Filter ES-150 Ver.2 / ES-300 Ver.2 are external filters made of stainless steel adapted to small aquarium tanks. Its traditional stainless steel body of the Super Jet Filter series has remained the same. By adapting high pump head function, it has evolved into something quieter and more powerful. It is designed for disassembly for easy maintenance. Spring Washer SS comes with the product to maintain Lily Pipe and Clear Hose easily. It can be widely used for breeding fish and growing aquatic plants.
* For freshwater aquarium use only.

Standard aquarium tank sizes adapted to ES-150 Ver.2:
W30xD18xH24cm~W45xD27xH30cm aquarium tanks
Standard aquarium tank sizes adapted to ES-300 Ver.2 Spin type:
W36xD22xH26~W45xD27xH30cm aquarium tanks
Standard aquarium tank size adapted to ES-300 Ver.2 Lily type:
W60xD30xH36cm aquarium tank

Specifications/
Silent design pump
Operation noise: less than 35dB (at the distant of 1m)
Operation frequency: 50/60Hz

Filtration Media/
ES-150 Ver.2 Anthracite 1L (supplied in net), Bio Cube 0.5L
ES-300 Ver.2 Anthracite 2L (supplied in net), Bio Cube 1L

Pump Specification/ ES-150 Ver.2 Flow Rate 3.5L/min, Maximum Pump Head 1.3m
ES-300 Ver.2 Flow Rate 6.0L/min, Maximum Pump Head 1.5m

Voltage/
ES-150 Ver.2 3W(12DCV)
ES-300 Ver.2 6W(12DCV)

ES-150 Ver.2 Spin type accessories/
Lily Pipe Spin P-1 (Ø10), Lily Pipe Mini V-2 (Ø13), Spring Washer SS, Clear Hose Ø10 (9 / 12mm), Clear Hose Ø13 (12 / 16mm), Hose Band Ø10 x 1, Hose Band Ø17 x1, Stabilization Mat, Cleaning Powder

ES-300 Ver.2 Lily type accessories/
Lily Pipe P-1 (Ø10), New Lily Pipe V-3 (Ø13), Spring Washer SS, Clear Hose Ø10 (9 / 12mm), Clear Hose Ø13 (12 / 16mm), Hose Band Ø10 x 1, Hose Band Ø17 x 1, Stabilization Mat, Cleaning Powder

ES-300 Ver.2 Spin type accessories/
Lily Pipe Spin P-1 (Ø10), Lily Pipe Mini V-2 (Ø13), Spring Washer SS, Clear Hose Ø10 (9 / 12mm), Clear Hose Ø13 (12 / 16mm), Hose Band Ø10 x 1, Hose Band Ø17 x1, Stabilization Mat, Cleaning Powder

* New pump needs its designated top panel. Power adopter has been updated as well.

Article Code

Item

Size

Capacity

-

105-722

ES-150 Ver.2

Ø118×H280mm

1.5L

-

105-723

ES-300 Ver.2 Lily type

Ø144×H360mm

3L

-

105-724

ES-300 Ver.2 Spin type

Ø144×H360mm

3L

-

New Pump + Top Plate set for Super Jet Filter ES-150 Ver. 2 / ES-300 Ver. 2

To meet the demand for replacement from the hobbyists using existing Super Jet Filter ES-150 / ES-300, we now offer a set of new Pump (including Power Adapter) + Canister Top Plate. Please experience the capability of easier to use Super Jet Filter ES-150 Ver. 2 / ES-300 Ver.2.

* Please refer to the Super Jet Filter ES-150 Ver.2 / ES-300 Ver.2 section for details on the product specifications.

Article Code

Item

-

105-414

New Pump + Top Plate set for Super Jet Filter ES-150 Ver. 2

-

105-415

New Pump + Top Plate set for Super Jet Filter ES-300 Ver. 2

-

Super Jet Filter ES-600/ES-900/ES-1200/ES-2400

Super Jet Filter ES-600/ES-900/ES-1200/ES-2400

○It is an external filter, ideal for Nature Aquarium. It can be used widely for keeping fish, aquatic plants, etc. (for fresh aquarium only). Each filter matches with the tank size as following:
・ES-600 : W60 × D30 × H36cm tank - W60×D45×H36cm tank
・ES-900 : W90×D45×H45cm tank
・ES-1200 : W120×D50×H50 tank
・ES-2400 : W150×D60×H60cm tank - W180×D60×H60 tank (※Multiple filters are required for larger tanks)
○It adopts a specially developed magnetic drive pump, and with this, decreased water flow caused by clogged filtration media (manufacturer: IWAKI CO.,LTD.) is less likely to occur. Its structure with separated Pump and Canister enables to reduce the heat produced by the Pump and negative effect to filtration bacteria caused by the electromagnetic ray.
○The Canister made of stainless steel (SUS304) in a cylindrical form has eliminated excessive structure inside, so that its volume capacity can be utilized to the maximum extent.

Filtration media /
1. ES-600 Anthracite 4L(supplied in net), Bio Cube 2L
2. ES-900 Bio Rio G 5L (supplied in net)
3. ES-1200 Bio Rio M 8L (supplied in net)
4. ES-2400 Bio Rio L 16L (supplied in net)
* A bag of Bio Rio M or Bio Rio L is included in all filtration systems of the Super Jet Filter series, except ES-150,ES-300 and the standard type ES-600. Their pebble sizes are larger than commercially available regular Bio Rio.

Common Specification /
ES-600:5.5L/min(50Hz)・6.0L/min(60Hz)
ES-900:11L/min(50Hz)・12L/min(60Hz)
ES-1200:16L/min(50Hz)・19L/min(60Hz)
ES-2400:27L/min(50Hz)・31L/min(60Hz)

Maximum Pump Head /
ES-600:2.1m(50Hz)・2.7m(60Hz)
ES-900:1.5m(50Hz)・2.1m(60Hz)
ES-1200:2.4m(50Hz)・3.4m(60Hz)
ES-2400:3.1m(50Hz)・4.3m(60Hz)

Voltage /
AC100V 50/60Hz

Power consumption /
ES-600:13W(50Hz)・16W(60Hz)
ES-900:13W(50Hz)・15W(60Hz)
ES-1200:26W(50Hz)・31W(60Hz)
ES-2400:40W(50Hz)・50W(60Hz)

Standard Accessories /
ES-600:
For 36cm (H) : Lily Pipe P-2, New Lily Pipe V-3,
For 45cm (H) : Lily Pipe P-4, New Lily Pipe V-5,
Clear Hose Ø13 (12 / 16mm),
Hose Band Ø16×2, Stabilization Mat

ES-900:Lily Pipe P-4 (Ø13) , New Lily Pipe V-7 (Ø17) , Clear Hose Ø13 (12 / 16mm) , Clear Hose Ø17 (15 / 20mm) , Hose Band Ø17 × 2 , Stabilization Mat
ES-1200:Lily Pipe P-6 (Ø13) , New Lily Pipe V-7 (Ø17) , Clear Hose Ø17 (15 / 20mm) , Clear Hose Ø13 (12 / 16mm) , Hose Band Ø16 × 2
ES-2400:Lily Pipe P-6 (Ø17) , New Lily Pipe V-7 (Ø20) , Clear Hose Ø20 (19 / 25mm) , Clear Hose Ø17 (15 / 20mm) , Hose Band Ø20 × 2

No.

Article Code

Item

Size

Capacity

-

1

105-701

ES-600 For 36cm (H)
(Type A plug)

Ø180×H420mm

6L

-

1

105-702

ES-600 For 45cm (H)
(Type A plug)

Ø180×H420mm

6L

-

1

105-711

ES-600 For 36cm (H)
(Type C plug)

Ø180×H420mm

6L

-

1

105-712

ES-600 For 45cm (H)
(Type C plug)

Ø180×H420mm

6L

-

2

105-728

ES-900

Ø180×H525mm

9L

-

2

105-729

ES-900
(Type C plug)

Ø180×H525mm

9L

-

3

105-1011

ES-1200

Ø220×H510mm

12L

-

4

105-1012

ES-2400

Ø280×H555mm

24L

-
