LIGHTING SYSTEM - AQUASKY

AQUASKY G 301/361/451/601/602

  • AQUASKY G 301

  • AQUASKY G 361

  • AQUASKY G 451

  • AQUASKY G 601

  • AQUASKY G 602

  • AQUASKY G:The newly developed LEDs illuminate green colors of aquatic plants vividly.
    AQUASKY:Aquatic plants look yellowish under conventional white LEDs.

  • Spectrum distribution map

  • The light diffuser cover effectively gives even illumination, same as the flagship model, Solar RGB.

AQUASKY G 301/361/451/601/602

AQUASKY G is an LED lighting system designed for W60cm or smaller aquarium tanks. With the use of high-luminosity white LED light with an enhanced green color spectrum, AQYASKY G can brightly illuminate the aquarium at less power consumption and makes the green color of aquatic plants look more vivid. Its slim lighting unit features excellent heat dissipation. When installed on the stand, AQUASKY G naturally blends in with surroundings and gives an open atmosphere above the aquarium.

Common feature/
*AQUASKY G is NOT compatible with Cube Garden Superior series.

301
STAND size:W300×D100×H95mm
Input voltage:AC100〜240V 50/60Hz
Power consumption:15W
Current consumption:400mA±5%
Luminous flux:900〜1,200lm
Color temperature:Around 7,000~8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED:0.4W/each×30
LED lifetime:Over 30,000hrs (subject to operating environment)
Operating temperature range:0〜35℃

Article Code

Item

Compatible tank size

-

108-115


AQUASKY G 301

W30×D30×H30cm(Glass thickness 5mm)
W30×D18×H24cm(Glass thickness 5mm)

-

361
STAND size:W360×D100×H95mm
Input voltage:AC100〜240V 50/60Hz
Power consumption:15W
Current consumption:400mA±5%
Luminous flux:900〜1,200lm
Color temperature:Around 7,000~8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED:0.4W/each×30
LED lifetime:Over 30,000hrs (subject to operating environment)
Operating temperature range:0〜35℃

Article Code

Item

Compatible tank size

-

108-116


AQUASKY G 361

W36 × D22 × H26cm (Glass thickness 5mm)

-

451
STAND size:W450×D100×H95mm
Input voltage:AC100〜240V 50/60Hz
Power consumption:22W
Current consumption:650mA±5%
Luminous flux:1,400〜1,600lm
Color temperature:Around 7,000~8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED:0.4W/each×45
LED lifetime:Over 30,000hrs (subject to operating environment)
Operating temperature range:0〜35℃

*NOT compatible with tank W45×D30×H45cm and W45×D45×H45cm with glass thickness of 6mm.

Article Code

Item

Compatible tank size

-

108-117


AQUASKY G 451
(This product is available from the Summer, 2017)

W45×D24×H16cm(Glass thickness 5mm)
W45×D27×H30cm(Glass thickness 5mm)

-

601
STAND size:W600×D94×H120mm
Input voltage:AC100〜240V 50/60Hz
Power consumption:30W
Current consumption:900mA±5%
Luminous flux:1,800〜2,100lm
Color temperature:Around 7,000~8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED:0.4W/each×63
LED lifetime:Over 30,000hrs (subject to operating environment)
Operating temperature range:0〜35℃

*NOT compatible with tank W60×D45×H45cm with glass thickness of 8mm.

Article Code

Item

Compatible tank size

-

108-118


AQUASKY G 601
(This product is available from the Late April, 2017)

W60×D30×H18cm(Glass thickness 5mm)
W60×D30×H36cm(Glass thickness 6mm)
W60×D30×H45cm(Glass thickness 6mm)

-

602(per lighting unit)
STAND size:W600×D188×H120mm
Input voltage:AC100〜240V 50/60Hz
Power consumption:30W
Current consumption:900mA±5%
Luminous flux:1,800〜2,100lm
Color temperature:Around 7,000~8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED:0.4W/each×63
LED lifetime:Over 30,000hrs (subject to operating environment)
Operating temperature range:0〜35℃

*NOT compatible with tank W60×D45×H45cm with glass thickness of 8mm.
* AQUASKY G 602 comes with 2 adapters.

Article Code

Item

Compatible tank size

-

108-119


AQUASKY G 602
(This product is available from the Late April, 2017)

W60×D30×H18cm(Glass thickness 5mm)
W60×D30×H36cm(Glass thickness 6mm)
W60×D30×H45cm(Glass thickness 6mm)

-

AQUASKY MOON 301/361/451/601

  • AQUASKY MOON 301 MIRROR UNIT Set

  • AQUASKY MOON 361 MIRROR UNIT Set

  • AQUASKY MOON 451 MIRROR UNIT Set

  • AQUASKY MOON 601 MIRROR UNIT Set

  • World first MIRROR UNIT for Planted Aquarium

  • Approx. 1.5 times brighter LED than conventional AQUASKY

  • Stand Illuminated Like Moonlight

AQUASKY MOON 301/361/451/601

AQUASKY MOON has the luminous intensity 1.5 times higher than the conventional AQUASKY. The frosted acrylic stand glows itself with light when turned on. It can be a supplemental lighting source, which gently illuminates your room like moonlight. Newly-developed MIRROR UNIT gives a beautiful top view of aquatic plants, which enables an innovative presentation of the planted aquarium. (Patent pending)

Common Specification /
* MIRROR UNIT is included in MIRROR UNIT Set of AQUASKY MOON. For AQUASKY MOON itself, the MIRROR UNIT is optional accessory.
* MIRROR UNIT that comes with MIRROR UNIT Set has stainless-steel body and acrylic mirror. Please handle the mirror with care after peeling off the protection film.

301
STAND size: W300×D136×H95mm
Power: AC100~240V 50/60Hz
Power consumption: 25W
Consumption current: 750mA±5%
Luminous flux: 2,150~2,450lm
Color temperature: Approx. 7,000K (There are some variation due to LED characteristics)
LED: 1 lamp 0.4W×50 lamps
LED lifetime: 30,000hrs or more (depending on usage environment)
Ambient temperature: 0~35℃

Article Code

Item

Compatible tank size

-

108-102


AQUASKY MOON 301 MIRROR UNIT Set

30cm tank (Glass thickness: 5mm)

-

108-106


AQUASKY MOON 301

30cm tank (Glass thickness: 5mm)

-

361
STAND size: W360×D136×H95mm
Power: AC100~240V 50/60Hz
Power consumption: 25W
Consumption current: 750mA±5%
Luminous flux: 2,150~2,450lm
Color temperature: Approx. 7,000K (There are some variation due to LED characteristics)
LED: 1 lamp 0.4W×50 lamps
LED lifetime: 30,000hrs or more (depending on usage environment)
Ambient temperature: 0~35℃

Article Code

Item

Compatible tank size

-

108-103


AQUASKY MOON 361 MIRROR UNIT Set

36cm tank (Glass thickness: 5mm)

-

108-107


AQUASKY MOON 361

36cm tank (Glass thickness: 5mm)

-

451
STAND size: W450×D136×H95mm
Power: AC100~240V 50/60Hz
Power consumption: 40W
Consumption current: 1,200mA±5%
Luminous flux: 3,450~3,650lm
Color temperature: Approx. 7,000K (There are some variation due to LED characteristics)
LED: 1 lamp 0.4W×80 lamps
LED lifetime: 30,000hrs or more (depending on usage environment)
Ambient temperature: 0~35℃

*NOT compatible with tank W45×D30×H45cm and W45×D45×H45cm with glass thickness of 6mm.

Article Code

Item

Compatible tank size

-

108-104


AQUASKY MOON 451 MIRROR UNIT Set

45cm tank (Glass thickness: 5mm)

-

108-108


AQUASKY MOON451

45cm tank (Glass thickness: 5mm)

-

601
STAND size: W600×D136×H120mm
Power: AC100~240V 50/60Hz
Power consumption: 50W
Consumption current: 1,500mA±5%
Luminous flux: 4,250~4,450lm
Color temperature: Approx. 7,000K (There are some variation due to LED characteristics)
LED: 1 lamp 0.4W×100 lamps
LED lifetime: 30,000hrs or more (depending on usage environment)
Ambient temperature: 0~35℃

*NOT compatible with tank W60×D45×H45cm with glass thickness of 8mm.
*The 1.5 times enhancement in brightness for 60cm tank is based on comparison with AQUASKY 601.

Article Code

Item

Compatible tank size

-

108-105


AQUASKY MOON 601 MIRROR UNIT Set

60cm tank (Glass thickness: 6mm)

-

108-109


AQUASKY MOON 601

60cm tank (Glass thickness: 6mm)

-

MIRROR UNIT

  • * MIRROR UNIT installed in AQUASKY MOON 601. MIRROR UNIT itself does not include any lighting system of AQUQSKY etc.

  • * MIRROR UNIT installed in AQUASKY MOON 601. MIRROR UNIT itself does not include any lighting system of AQUQSKY etc.

MIRROR UNIT

MIRROR UNIT for AQUASKY is an optional unit to install on AQUASKY series products. It provides beautiful front and top view of the aquascape at the same time, which enables an innovative presentation of the planted aquarium.

Article Code

Item

Compatible AQUASKY

-

108-110


MIRROR UNIT 301

AQUASKY 301
AQUASKY MOON 301
AQUASKY G 301

-

108-111


MIRROR UNIT 361

AQUASKY 361
AQUASKY MOON 361
AQUASKY G 361

-

108-112


MIRROR UNIT 451

AQUASKY 451
AQUASKY MOON 451
AQUASKY G 451

-

108-114


MIRROR UNIT MOON 601

AQUASKY MOON 601

-

108-113


MIRROR UNIT 601/602

AQUASKY 601/602
AQUASKY G 601/602

-

AQUASKY 301/361/451

  • AQUASKY301

  • AQUASKY361

  • AQUASKY451

  • Side view

  • Two months after the production of the layout (trimmed 3 times)

  • Lighting

  • amount of light

AQUASKY 301/361/451

AQUASKY is an LED lighting system developed specifically for planted aquariums. It achieved the best-in-class brightness for aquarium LED lighting. It adapts high-luminosity white LEDs, and they are arrenged in an optimal layout for enhanced light distribution. AQUASKY enables the healthy growth of aquatic plants, which had been considered difficult with LED lamps.

301
Lighting unit size / W280×D68×H10mm
Clear stand size / W300×D100×H95mm
Voltage / AC100〜240V 50/60Hz
Power consumption / 17W
Current consumption/400mA ±5%
Luminous flux / 1,450〜1,550lm
Color temperature/Around 7,000 K
LED / 0.4W / each×30
LED lifetime / Over 30,000hrs
Operating temperature range / 0〜35℃

Article Code

Item

Aquarium Size (cm)

-

108-068


AQUASKY 301

W30×D30×H30cm(Glass thickness 5mm)
W30×D18×H24cm(Glass thickness 5mm)
Waterfall W30×D30×H30(Glass thickness 5mm)

-

108-084


AQUASKY 301 (Type C plug)

W30×D30×H30cm(Glass thickness 5mm)
W30×D18×H24cm(Glass thickness 5mm)
Waterfall W30×D30×H30(Glass thickness 5mm)

-

361
Lighting unit size / W280×D68×H10mm
Clear stand size / W360×D100×H95mm
Voltage / AC100〜240V 50/60Hz
Power consumption / 17W
Current consumption / 400mA ±5%
Luminous flux / 1,450〜1,550lm
Color temperature / Around 7,000 K
LED / 0.4W / each×30
LED lifetime / Over 30,000hrs
Operating temperature range / 0〜35℃

Article Code

Item

Aquarium Size (cm)

-

108-069


AQUASKY 361

W36×D22×H26cm(Glass thickness 5mm)

-

108-085


AQUASKY 361 (Type C plug)

W36×D22×H26cm(Glass thickness 5mm)

-

451
Lighting unit size / W430×D68×H10mm
Clear stand size / W450×D100×H95mm
Voltage / AC100〜240V 50/60Hz
Power consumption / 22W
Current consumption / 650mA ±5%
Luminous flux / 1,800〜2,160lm
Color temperature / Around 7,000K
LED / 0.4W / each×45
LED lifetime / Over 30,000hrs
Operating temperature range / 0〜35℃

Article Code

Item

Aquarium Size (cm)

-

108-070


AQUASKY 451

W45×D24×H16cm(Glass thickness 5mm)
W45×D27×H30cm(Glass thickness 5mm)

-

108-086


AQUASKY 451 (Type C plug)

W45×D24×H16cm(Glass thickness 5mm)
W45×D27×H30cm(Glass thickness 5mm)

-

AQUASKY 601/602

  • AQUASKY601

  • AQUASKY602

  • amount of light

AQUASKY 601/602

AQUASKY is an LED lighting system developed specifically for planted aquariums. It achieved the best-in-class brightness for aquarium LED lighting. It adapts high-luminosity white LEDs, and they are arranged in an optimal layout for enhanced light distribution. AQUASKY enables the healthy growth of aquatic plants, which had been considered difficult with LED lamps.

601
Lighting unit size / W570×D68×H10mm
Clear stand size / W600×D94×H120mm
Voltage / AC100〜240V 50/60Hz
Power consumption / 30W
Current consumption / 900mA ±5%
Luminous flux / 2,520〜2,850lm
Color temperature / Around 7,000K
LED / 0.4W / each×63
LED lifetime / Over 30,000hrs
Operating temperature range / 0〜35℃

Article Code

Item

Aquarium Size (cm)

-

108-080


AQUASKY 601 (Single light type)

W60×D30×H18cm(Glass thickness 5mm)
W60×D30×H36cm(Glass thickness 6mm)
W60×D30×H45cm(Glass thickness 6mm)
Waterfall W60×D45×H45(Glass thickness 6mm)

-

108-087


AQUASKY 601 (Single light type/Type C plug)

W60×D30×H18cm(Glass thickness 5mm)
W60×D30×H36cm(Glass thickness 6mm)
W60×D30×H45cm(Glass thickness 6mm)
Waterfall W60×D45×H45(Glass thickness 6mm)

-

602
Lighting unit size / W570×D68×H10mm
Clear stand size / W600×D188×H120mm
Voltage / AC100〜240V 50/60Hz
Power consumption / 60W(30W per lighting unit)
Current consumption / 900mA ±5%(per lighting unit)
Luminous flux / 2,520〜2,850lm(per lighting unit)
Color temperature / Around 7,000K
LED / 0.4W / each×63 (2 units)
LED lifetime / Over 30,000hrs
Operating temperature range / 0〜35℃
* AQUASKY 602 comes with 2 adapters.
* Each adapter takes one lighting unit.

Article Code

Item

Aquarium Size (cm)

-

108-081


AQUASKY602 (Twin light type)

W60×D30×H18cm(Glass thickness 5mm)
W60×D30×H36cm(Glass thickness 6mm)
W60×D30×H45cm(Glass thickness 6mm)
Waterfall W60×D45×H45(Glass thickness 6mm)

-

108-088


AQUASKY602 (Twin light type/Type C plug)

W60×D30×H18cm(Glass thickness 5mm)
W60×D30×H36cm(Glass thickness 6mm)
W60×D30×H45cm(Glass thickness 6mm)
Waterfall W60×D45×H45(Glass thickness 6mm)

-

AQUASKY301 High Type

  • AQUASKY301 High Type

  • For example.

AQUASKY301 High Type

AQUASKY 301 High Type is an LED lighting unit that is suitable for the cultivation of emersed Wabi-kusa. With the stainless steel wire stand, it can illuminate the aquarium from a higher position than other AQUASKY models.

301 High Type
Lighting unit size /W280×D68×H10mm
Stand size / W307×H220mm
Voltage / AC100〜240V 50/60Hz
Power consumption / 17W
Current consumption/400mA ±5%
Luminous flux / 1,450〜1,550lm
Color temperature / Around 7,000 K
LED / 0.4W / each×30
LED lifetime / Over 30,000hrs
Operating temperature range / 0〜35℃

Article Code

Item

Aquarium Size (cm)

-

108-082

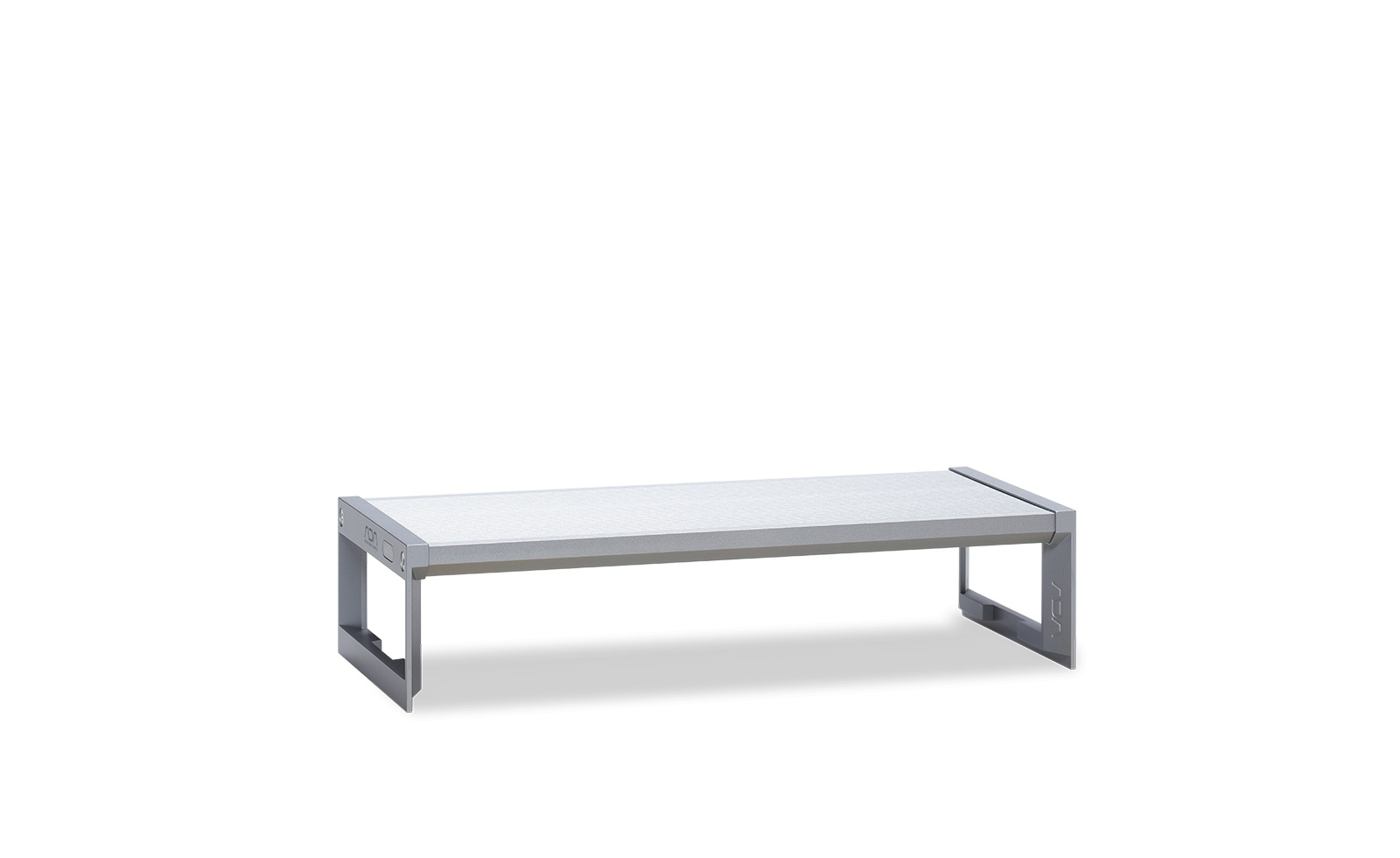

AQUASKY301 High Type

W30×D30×H30cm(Glass thickness 5mm)
W30×D18×H24cm(Glass thickness 5mm)
Waterfall W30×D30×H30 (Glass thickness 5mm)

-
